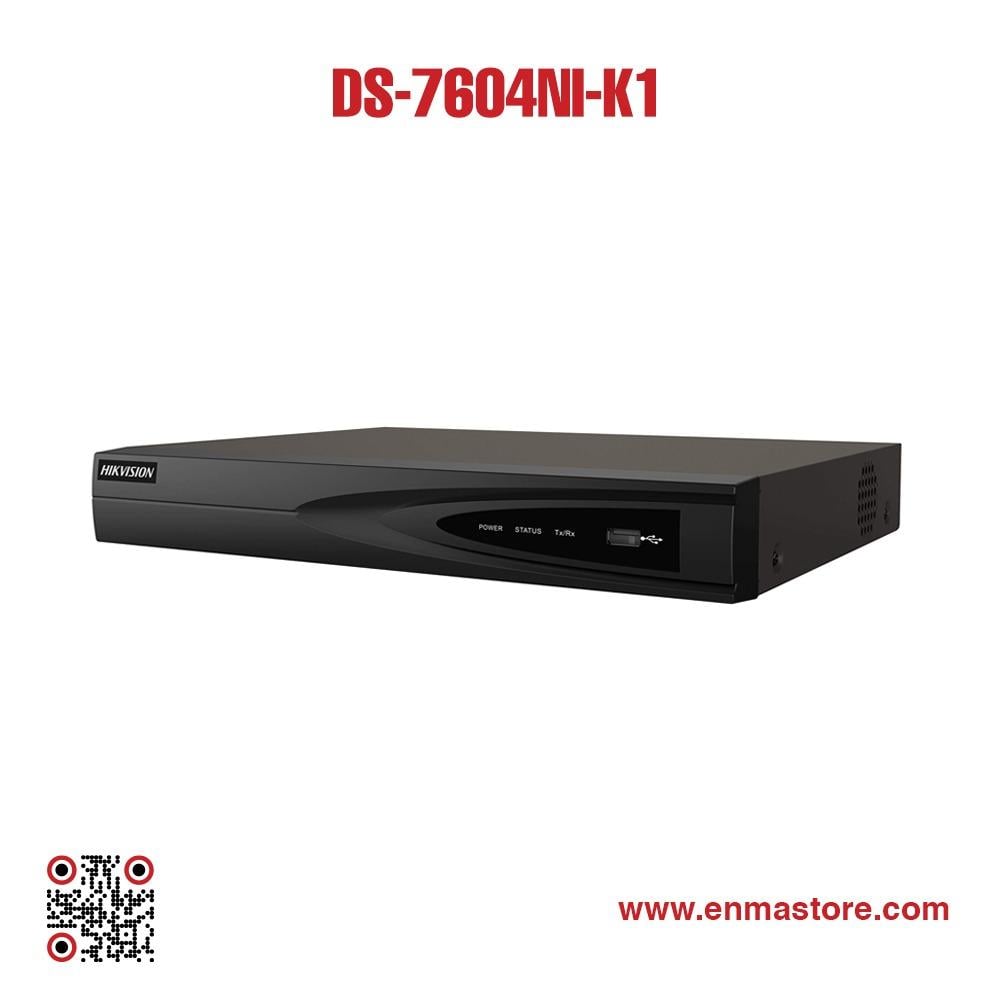

Hikvision 4-Channel 4K Network Video Recorder (DS-7604NI-K1)
A compact and reliable 4-channel NVR supporting up to 8MP IP cameras, ideal for small to medium-sized surveillance systems.
What It Does?
Provides high-definition recording and playback for up to 4 IP cameras, supporting resolutions up to 8MP. Offers efficient video compression and simultaneous HDMI/VGA output for flexible monitoring.
Key Features:
- Camera Inputs: 4 IP channels
- Video Compression: H.265+/H.265/H.264+/H.264
- Decoding Capacity: Up to 1 channel at 8MP, 3 channels at 4MP, or 6 channels at 1080p
- Incoming Bandwidth: Up to 40 Mbps
- Outgoing Bandwidth: Up to 80 Mbps

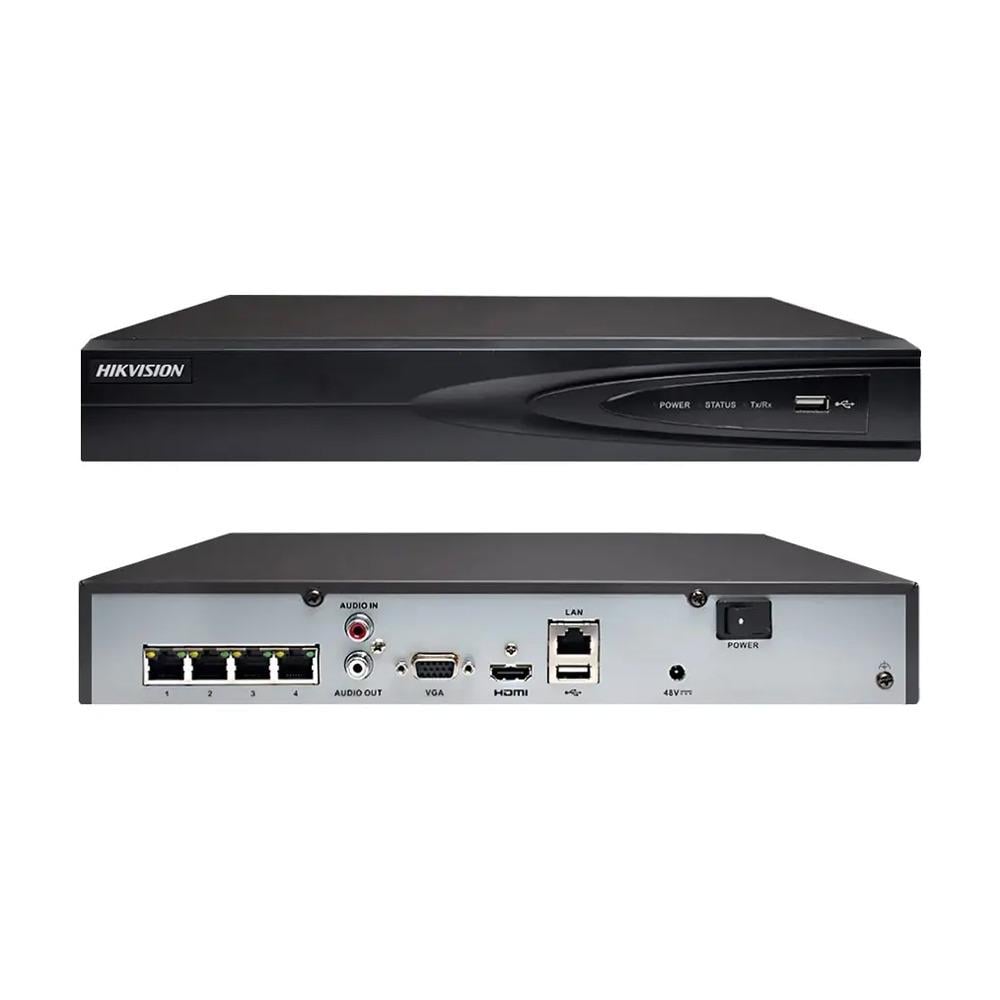

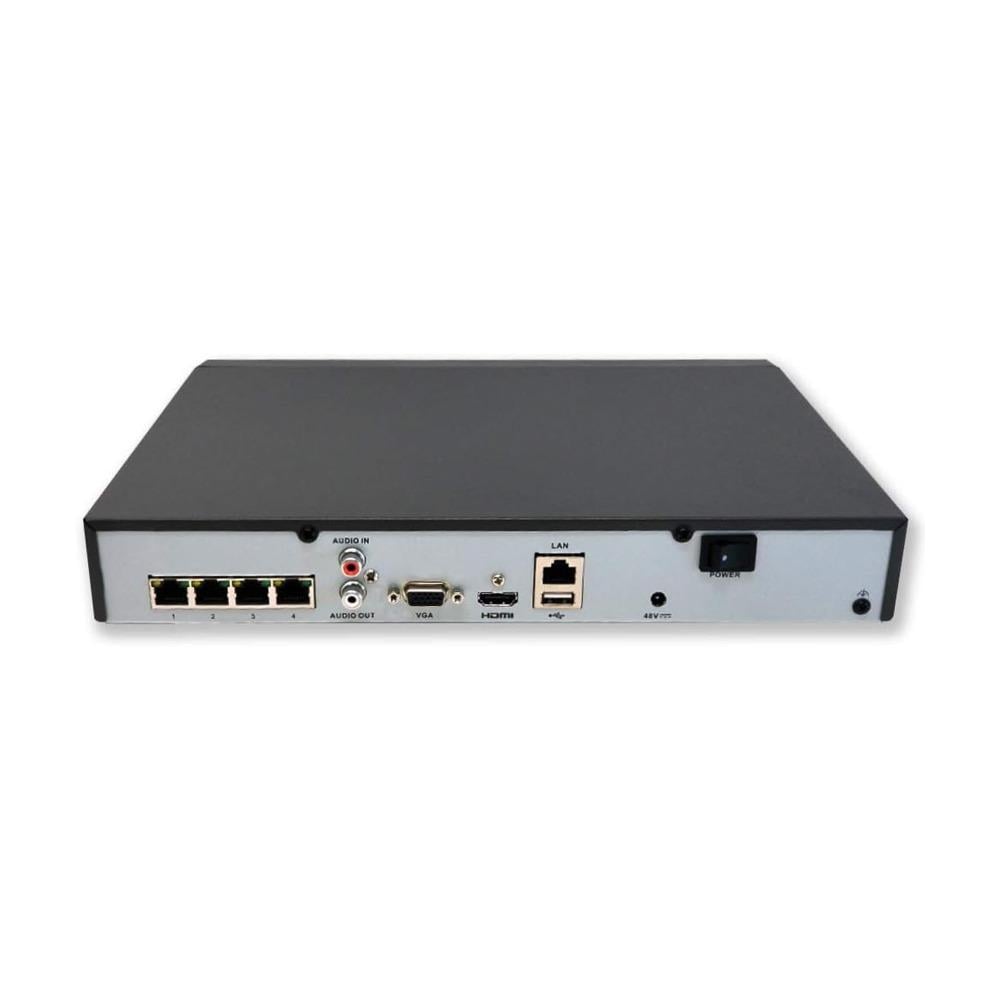

- Video Outputs:
- HDMI: Up to 4K (4096 × 2160) at 30Hz
- VGA: Up to 1920 × 1080 at 60Hz
- Simultaneous HDMI and VGA output
- Audio:
- 1-channel RCA audio output
- 1-channel RCA two-way audio
- Storage:
- 1 SATA interface, supporting up to 8TB HDD
- USB Interfaces: 2 × USB 2.0
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Remote Connections: Up to 32 users
- Smart Functions:
- Motion Detection 2.0
- Human/Vehicle Analysis on 1 channel
- Power Supply: 12 VDC, 1.5 A
- Power Consumption: ≤ 10 W (without HDD)
- Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Dimensions: 320 × 240 × 48 mm (12.6" × 9.4" × 1.9")
- Weight: ≤ 1 kg (without HDD)
Ideal For:
Small to medium-sized surveillance setups requiring high-resolution recording and efficient video management.
Why Choose This Product?
Offers a balance of performance and efficiency with support for high-resolution cameras, advanced compression, and smart analytics in a compact form factor.
Extra Info:
- Supported Resolutions: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
- Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Certifications: FCC, CE
What’s in the Box:
- NVR unit
- Power adapter
- Mouse
- Quick start guide
- Warranty card
User-Friendliness
Easy to install and operate with intuitive interface and remote access capabilities via Hik-Connect app.
Enhance your surveillance system with the Hikvision DS-7604NI-K1—combining high-resolution recording with smart features in a compact design.
